Abatement Technologies HEPA-CARE HC800CD Ceiling-Mounted Air Purification System

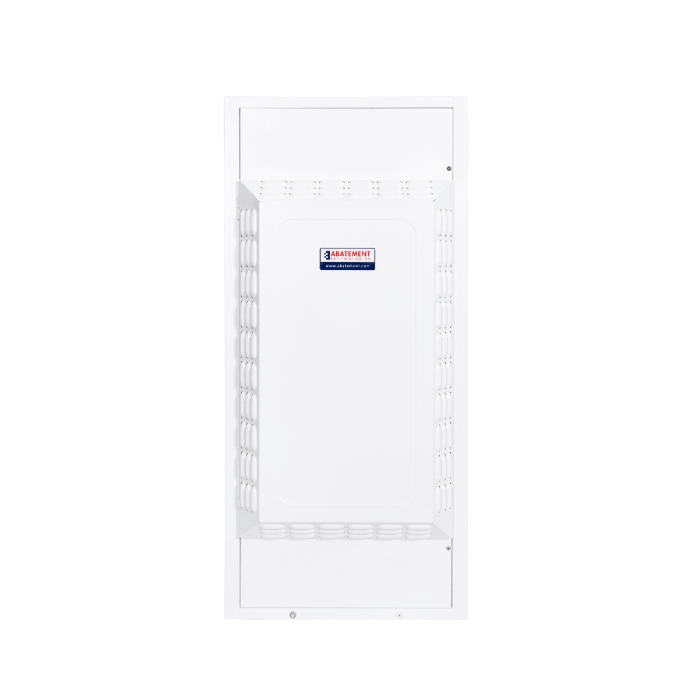

HEPA-CARE HC800CD Ceiling-Mounted Air Purification System

Ceiling-mounted HEPA and UVGI air filtration for permanent patient isolation and infection control.
The HC800CD is a ceiling-mounted negative air machine and air purifier designed for permanent installation in healthcare environments. Ideal for CDC- and CSA-compliant isolation rooms, this two-module system combines powerful HEPA filtration, optional UV-C disinfection, and activated carbon filtration in a quiet, low-profile setup.

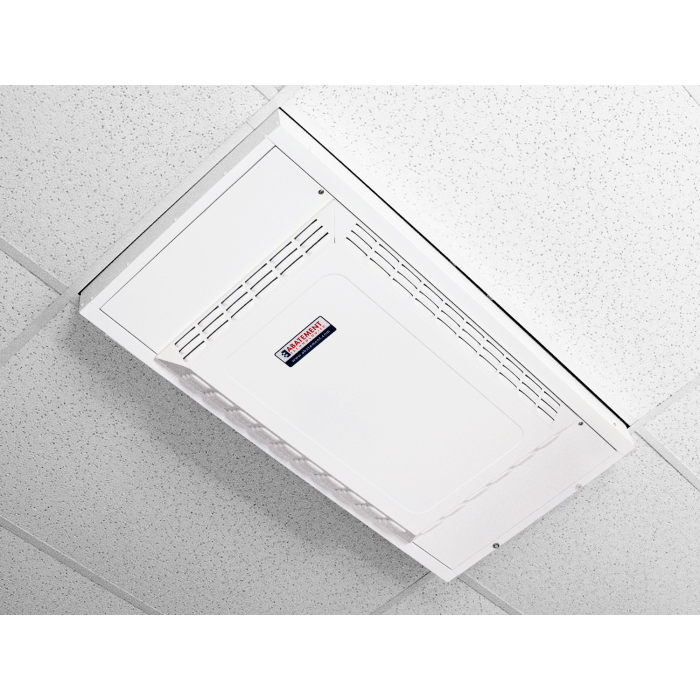

Designed for hospitals, clinics, and critical care spaces, the HC800CD supports both recirculating and negative pressuremodes. It's a cost-effective alternative to custom-built isolation rooms—requiring no floor space and installing easily into a standard 2' x 4' drop ceiling grid.

Key Features

• H14 HEPA Filtration
  Includes a pharmaceutical-grade HEPA filter with 99.995% efficiency at 0.3 microns, mounted in a strong anodized aluminum frame and sealed with silicone gel to prevent air bypass.

• Two-Stage Filtration

  • 2" antimicrobial-treated pre-filter

  • H14 HEPA final filter with silicone-gel seal
    Optional carbon filters available to remove odors and gases.

• Quiet, High-Capacity Airflow
  Dual motorized impellers rated for 100,000+ hours provide up to 12 air changes per hour (ACH) in spaces from 3,625 to 4,250 cubic feet, operating at a quiet 35 to 59 dBA.

• Optional UV-C Disinfection Module
  Add the UV400C-PT ceiling-mounted module to integrate germicidal UV-C irradiation, enhancing air purification performance.

• Modular Cabinet Design

  • Filtration unit installs above ceiling

  • Digital wall-mounted control panel can be placed in-room or remotely
    Hinged access door allows for fast HEPA and pre-filter replacements.

• Smart LCD Touchscreen Controls

  • 3.25” digital color display

  • Password-protected access

  • Five-speed airflow settings

  • Status indicators:

    • Green (Power On)

    • Yellow (Change Pre-Filter)

    • Red (Change HEPA Filter)

• Global Ready
  Available in 115V or 230V versions for international operation.

Specifications

• Installation: Fits 2’ x 4’ drop ceiling grid

• Filtration Efficiency: 99.995% @ 0.3 microns

• Coverage Area: 3,625 – 4,250 cubic feet

• Airflow: Up to 12 ACH

• Noise Level: 35 – 59 dBA @ 5 ft

• Construction: Powder-coated aluminum

• Controls: LCD touchscreen with monitoring alerts

• Certifications:

  • Medical-grade (FDA Class II equivalent)

  • Independently tested to UL and CSA safety standards

  • HEPA tested to IEST-RP-CC001 standards

The HC800CD is the go-to solution for permanent airborne infection control, delivering high-efficiency HEPA filtration, quiet performance, and reliable pressure management in fixed healthcare environments.
