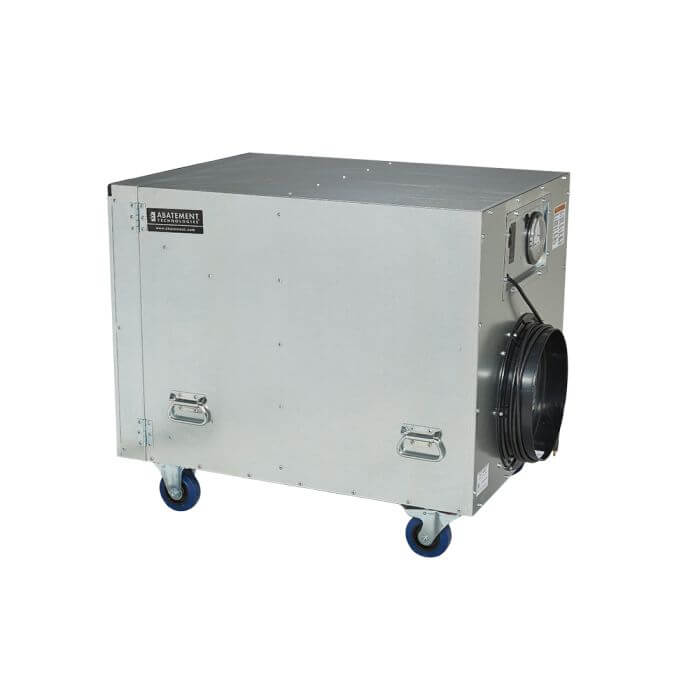

Abatement Technologies HEPA-AIRE H2KMA Deluxe Model Negative Air Machine
in stock
Heavy-Duty HEPA Filtration in a Rugged Steel Frame
The HEPA-AIRE H2KM and H2KMA Negative Air Machines from Abatement Technologies® set the benchmark for air filtration in high-demand environments like mold, asbestos, lead abatement, and construction cleanup. Housed in a durable galvanized steel cabinet with water-tight pop-rivet construction, these machines are engineered to endure tough job site conditions while delivering powerful HEPA filtration.
Whether you're tackling large-scale remediation or routine air quality control in sensitive environments, the H2KM and deluxe H2KMA models offer unmatched performance and reliability.
Key Features:
-
Two-Speed Airflow Control – Choose between 2,000 CFM (High) and 1,300 CFM (Low) to adapt to your project’s needs.
-
True HEPA Filtration – Equipped with a standard 6” deep HEPA filter (99.97% efficient @ 0.3 microns), individually tested and certified at 2,000 CFM. Optional 12” deep filters available for longer service life.
-
Quick-Change Pre-Filters – Tool-free access speeds up maintenance and reduces downtime.
-
Contractor-Proven Performance – A high-performance motor and blower deliver consistent airflow under demanding conditions.
-
Mobility Built In – Rolls easily with two fixed and two locking 4” swivel casters.
-
Job-Site Ready – Includes 12” molded inlet manifold and attached 12” exhaust collar (flex duct not included).
-
User-Friendly Controls – Located conveniently on the rear panel for easy operation.
Model Differences:
-
H2KM: Equipped with a visual “change filter” indicator lamp.
-

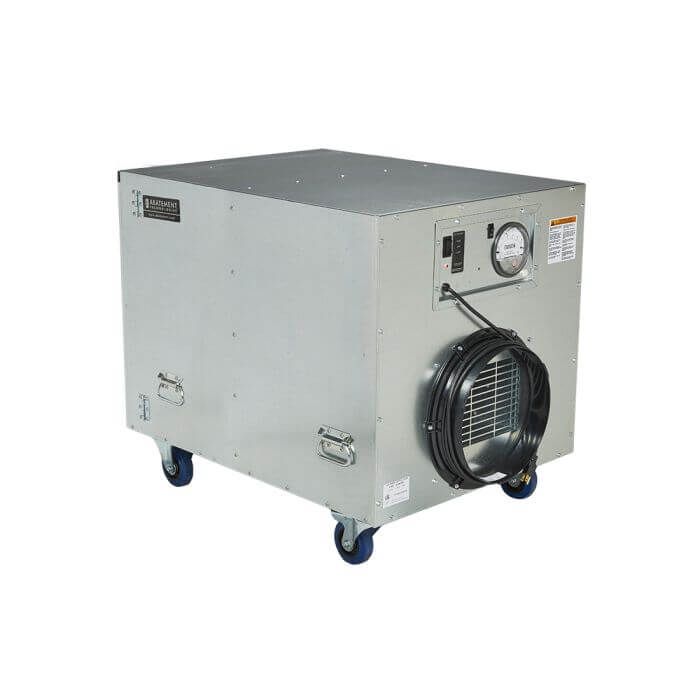

H2KMA: Adds a large 5” diameter differential pressure gauge and an audible “change filter” alarm for proactive maintenance alerts.
Specifications:
-
Airflow: 2,000 / 1,300 CFM (High / Low)
-
Weight: 124 lbs (including filters)
-
Power Supply: 115V / 60 Hz
-
Cabinet: Galvanized steel with riveted construction
Export Models:
-
H2MTF and H2MATF models available for international use (230V / 50Hz).
| Dimensions (L x W x H) |
35.75 x 26 x 30.25 (91 x 66 x 77)
|
| Power Supply Requirements |
120 VAC, 60 Hz, 15 A
|
| Normal Starting Amps |
10 or less
|
| Electrical Safety |
120 VAC, 60 Hz, 15 A
|
| Cabinet Material |
20 gauge galvanized steel
|
| Stage 2 Pre_Filter |
H2002, 2” deep particulate pleat
|
| Stage 1 pre-filter |
H2001, polypad
|
| HEPA Filter |
H242406-99, 6” deep 99.97% @ 0.3 microns
|
| Transportability |
4, 360 degree swivel casters with locking feature. 2 each removable 4 fixed position casters.
|
| Motor Output |
1 HP, 2 speed motor with thermal overload protection, auto re-set, 60 Hz, single phase
|
| Net Weight |
124 (56.25)
|
